SLB350S24K

Name: Advanced Energy SLB350S24K
Brand: Advanced Energy / SL Power
SKU: 675-SLB350S24K
Price: 108.09 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

675-SLB350S24K

Mfr. No:

SLB350S24K

Mfr.:

Advanced Energy / SL Power

Description:

Power Supplies - Chassis Mount 350W 24V 14.6A 3x5x1.5 UL62368-1

Lifecycle:

New Product:

New from this manufacturer.

Datasheet:

SLB350S24K Datasheet (PDF)

More Information

Learn more about Advanced Energy / SL Power SLB350S24K

In Stock: 36

Stock:: 36 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$108.09	$108.09
	$103.38	$516.90
	$100.80	$1,008.00
	$98.05	$2,451.25
	$96.01	$4,800.50
	$94.02	$9,402.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Advanced Energy
Product Category:	Power Supplies - Chassis Mount
RoHS:
Output Power:	350 W
Input Voltage:	80 VAC to 264 VAC
Number of Outputs:	1 Output
Output Voltage-Channel 1:	24 VDC
Output Current-Channel 1:	14.6 A
Case Style:	Open Frame
Isolation Voltage:	4 kVAC
Efficiency:	90 %
Industry:	Industrial
Length:	127 mm
Width:	76.2 mm
Height:	33.5 mm
Series:	SLB350
Brand:	Advanced Energy / SL Power
Dimensions:	127 mm x 76.2 mm x 33.5 mm
Input Frequency:	47 Hz to 63 Hz
Load Regulation:	2 %
Maximum Operating Temperature:	+ 70 C
Minimum Operating Temperature:	- 10 C
Mounting Style:	Chassis
Open Frame/Enclosed:	Open Frame
Product:	AC/DC Power Supply
Factory Pack Quantity:	1
Unit Weight:	370 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SLB350S24K Datasheet (PDF)

Images

CAHTS:: 8504409093
USHTS:: 8504409530
KRHTS:: 8504401090
TARIC:: 8504408390
ECCN:: EAR99

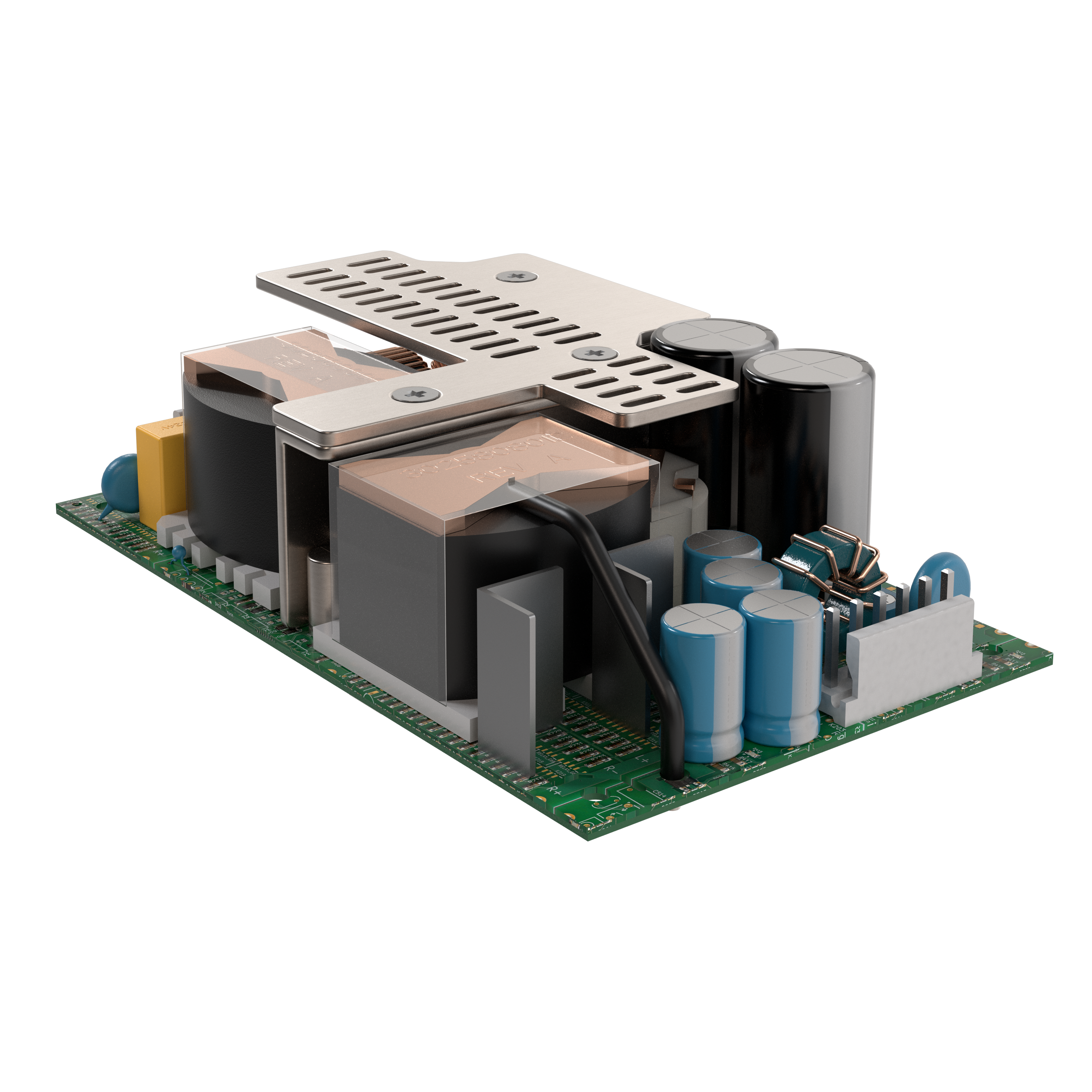

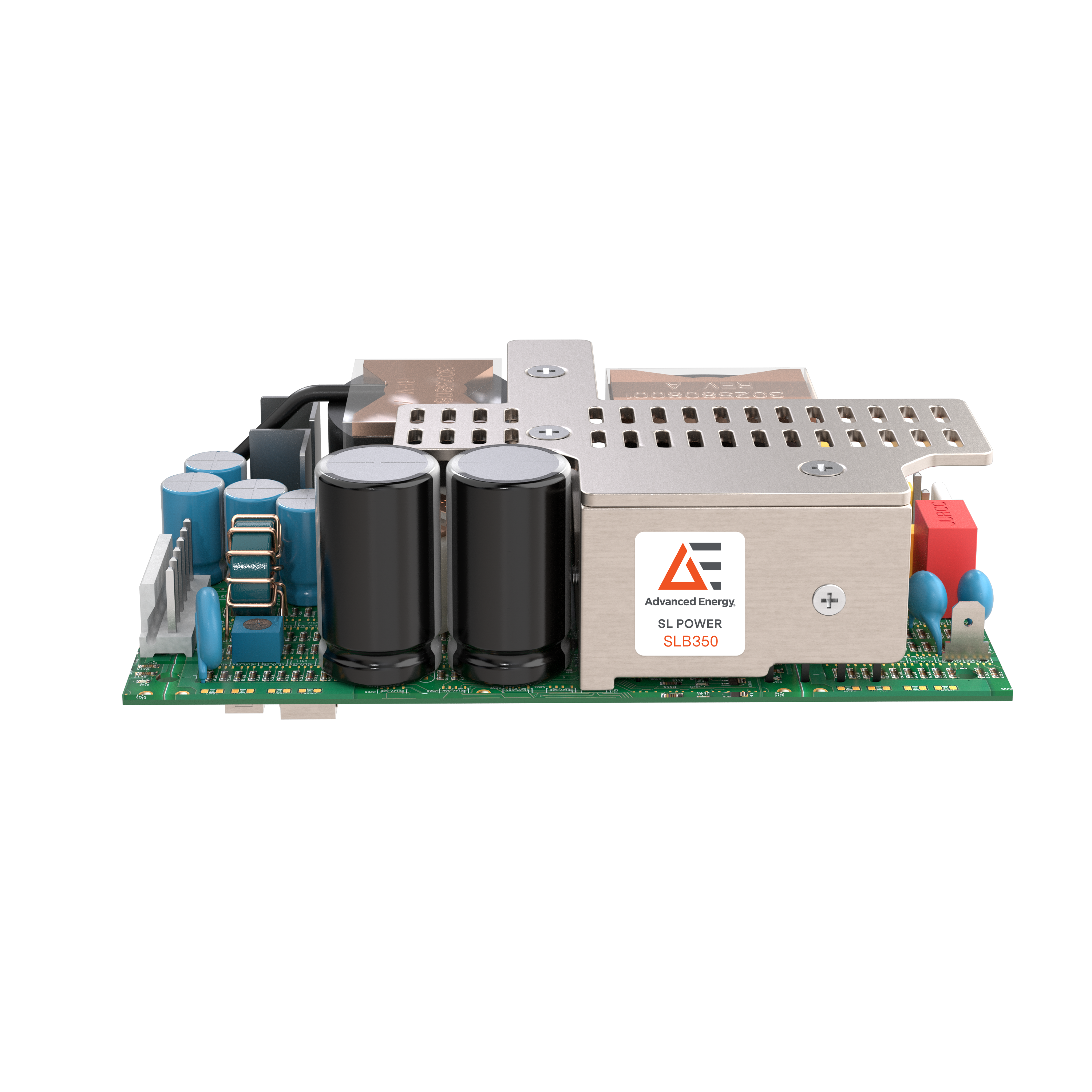

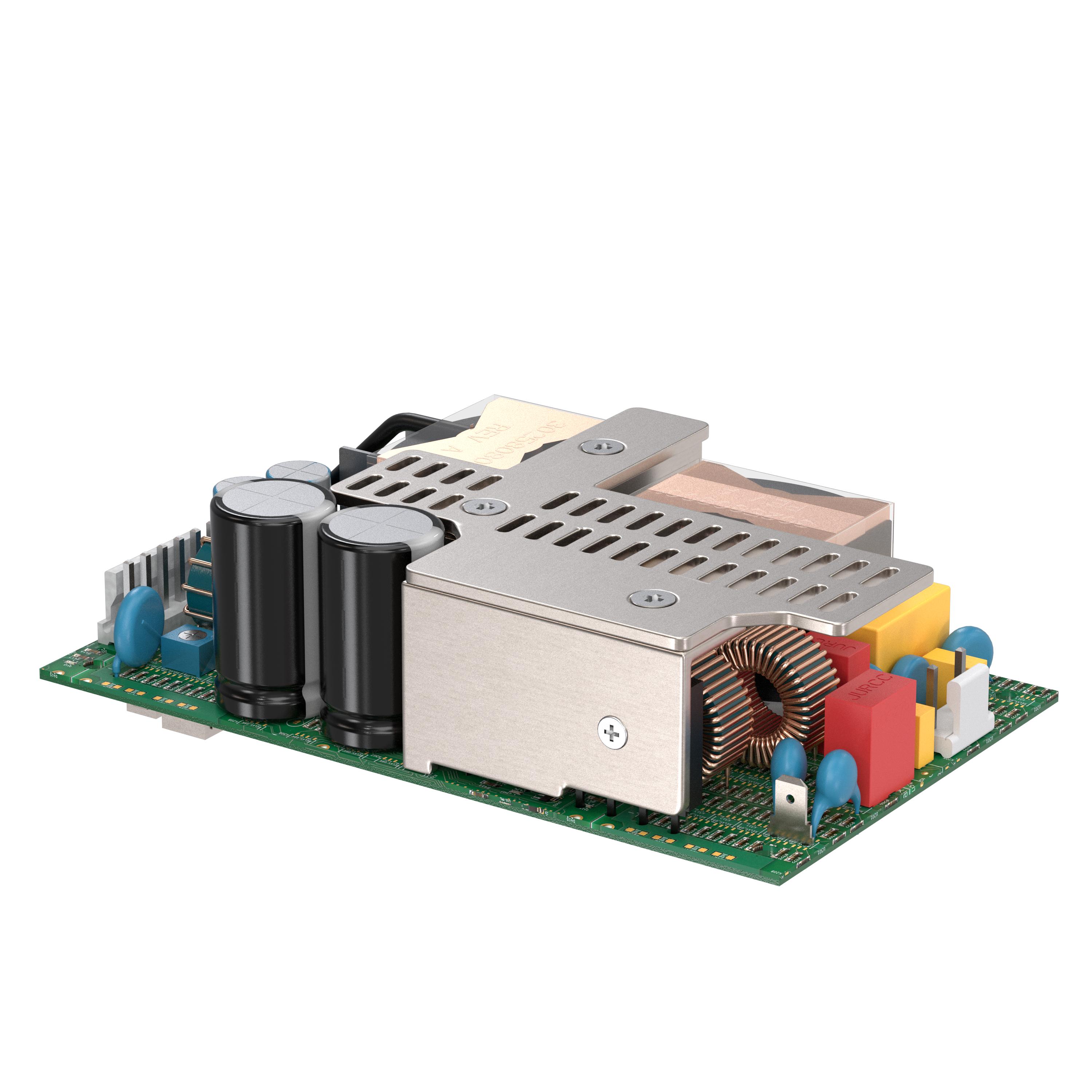

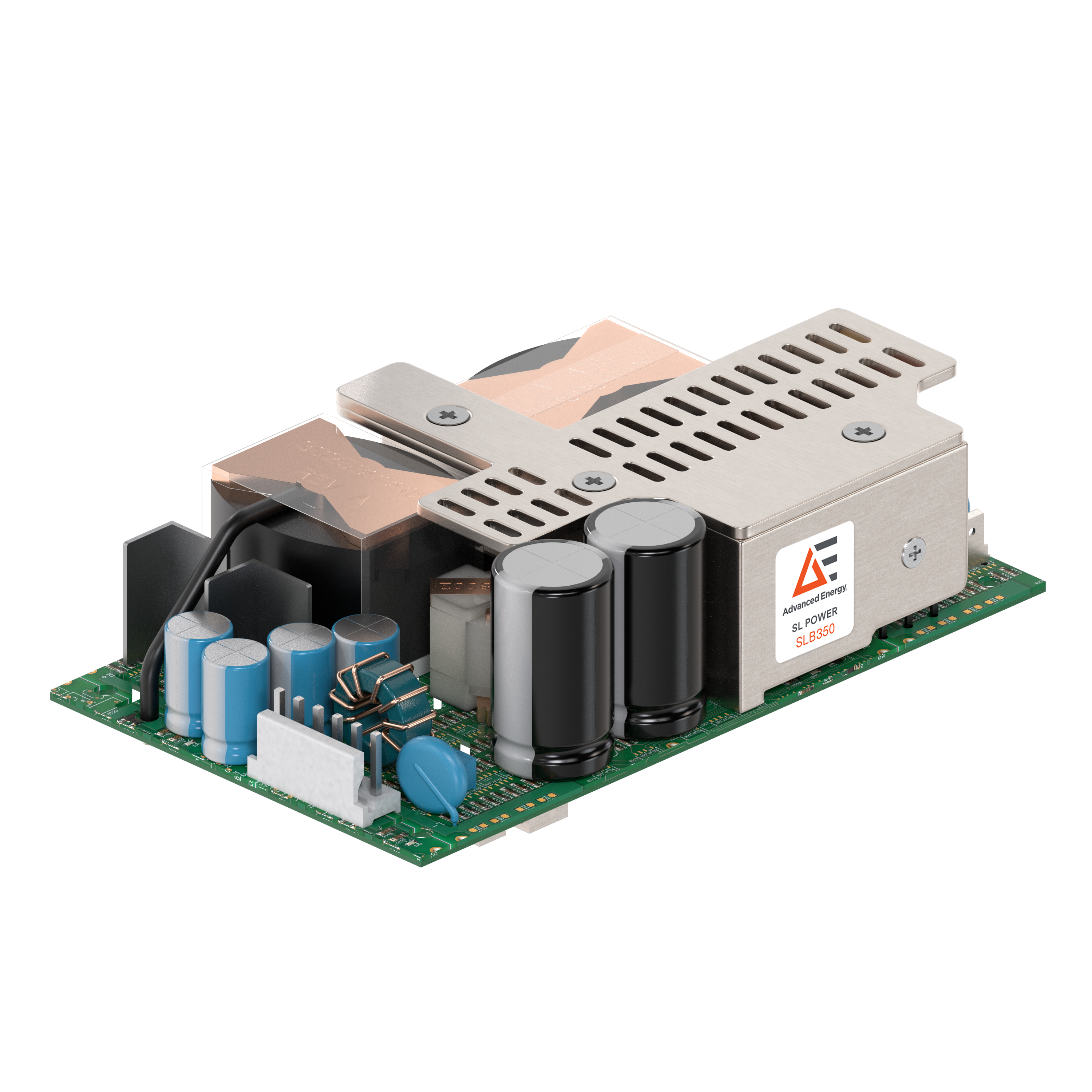

SLB350 Power Supplies

Advanced Energy / SL Power SLB350 Power Supplies are high-performance AC-DC power supplies designed for industrial-grade applications with a single-output configuration. These power supplies provide up to 350W of power with 200LFM airflow and nominal voltages of 12V, 24V, 48V, and 56V. The SLB350 power supplies operate within an 85V_AC to 264V_AC input voltage range, with a typical efficiency of 90%, and offer fixed output voltage adjustability. The protection features include output overvoltage, short-circuit, thermal protection, and overload protection. The SLB350 power supplies comply with RoHS and are available in a 3-inch x 5-inch x 1.5-inch form factor.
