SFW7S-2STME1LF

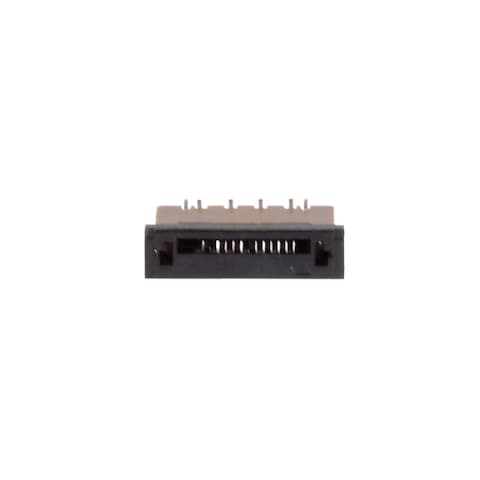

Name: Amphenol SFW7S-2STME1LF
Brand: Amphenol FCI
SKU: 649-SFW7S-2STME1LF
Price: 0.57 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

649-SFW7S-2STME1LF

Mfr. No:

SFW7S-2STME1LF

Mfr.:

Amphenol FCI

Description:

FFC & FPC Connectors 1.00mm Flex Connector, SFW Straight series, 7 Position, Top Entry Surface Mount, ZIF,Tin plating with Mount Plate.

Datasheet:

SFW7S-2STME1LF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol FCI SFW7S-2STME1LF

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1000)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$0.57	$0.57
	$0.487	$4.87
	$0.435	$10.88
	$0.414	$41.40
	$0.37	$92.50
Full Reel (Order in multiples of 1000)
	$0.351	$351.00
	$0.295	$590.00
	$0.284	$2,840.00
	$0.273	$5,460.00

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Board Mount
Number of Positions:	7 Position
Pitch:	1 mm
Termination Style:	SMD/SMT
Mounting Angle:	Vertical
Contact Location:	Bottom Contact
Contact Plating:	Tin
Current Rating:	1 A
Series:	SFW-S
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Actuation Type:	ZIF
Brand:	Amphenol FCI
Contact Material:	Phosphor Bronze
Flammability Rating:	UL 94 V-0
Housing Colour:	Brown
Housing Material:	Polyphenylene Sulfide (PPS)
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	1000
Subcategory:	FFC & FPC Connectors
Voltage Rating:	100 VAC/100 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SFW7S-2STME1LF Datasheet (PDF)

PCN

Specification Sheets

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

FFC/FPC Flexible Circuit Connectors

Amphenol FCI FFC/FPC Flexible Circuit Connectors feature an expansive range of innovative connector solutions that terminate FFC/FPC. These Amphenol FCI connectors include low insertion force (LIF) and zero insertion force (ZIF), top and bottom contact options, vertical and right-angle orientations, surface-mount, and through-hole terminations in contact spacing options all the way down to 0.50mm. Additional features, such as optional cable locks and additional mounting devices, ensure an ideal solution for demanding applications.
