M12D-04BFFA-SL8001

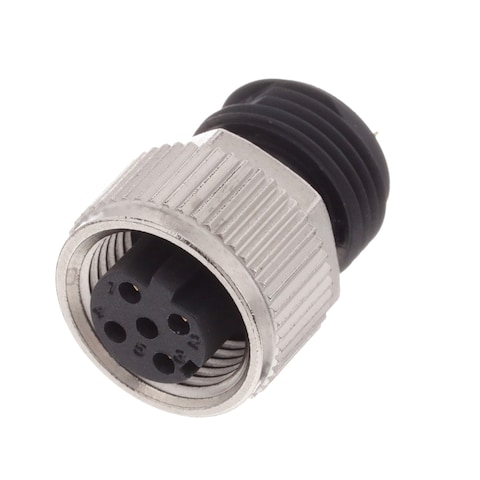

Name: Amphenol M12D-04BFFA-SL8001
Brand: Amphenol LTW
SKU: 523-M12D04BFFASL8001
Price: 8.51 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-M12D04BFFASL8001

Mfr. No:

M12D-04BFFA-SL8001

Mfr.:

Amphenol LTW

Description:

Circular Metric Connectors M12 Circular Metric Connector, D Code, Metal, 4A, 04 pins, Female Connector, Female Contact, Straight, Screw Thread, Solder, Field Installable, F4.5 - F6.5mm, IP68 Mated

Datasheet:

M12D-04BFFA-SL8001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol LTW M12D-04BFFA-SL8001

In Stock: 423

Stock:: 423

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 500

Expected 06/02/2026

500

Expected 17/03/2026
Factory Lead Time:: 5

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$8.51	$8.51
	$7.23	$72.30
	$6.69	$133.80
	$6.68	$334.00
	$6.54	$1,308.00
	$5.48	$2,740.00
	$5.22	$5,220.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Circular Metric Connectors
RoHS:
Product Type:	Circular Metric Connectors
Number of Contacts:	4 Contact
Thread Size:	M12
Termination Style:	Solder
Coding:	D Coded
Current Rating:	4 A
Voltage Rating:	250 V
IP Rating:	IP68
Series:	M12 D Code
Packaging:	Bulk
Brand:	Amphenol LTW
Contact Gender:	Socket (Female)
Locking Mechanism:	Screw Locking
Mounting Style:	Field Attachable-Installable
Product:	Connectors
Shell Style:	Receptacle
Factory Pack Quantity:	10
Subcategory:	Circular Connectors
Type:	Straight

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

M12D-04BFFA-SL8001 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

M Series Circular Metric Connectors

Amphenol LTW M Series Circular Metric Connectors provide secure and reliable data transmission, as well and superior power transmission performance, in accordance with IEC standards. The M series includes a comprehensive product range, including M5, M8, Guided M8, M10.5, M12, 7/8", M20, and M23. Additional versions offered are push-pull, MPronto-12, and MPronto-12 push-pull connectors with a unique push-pull, fast-locking system that ensures secure, tool-free plugging. The MPronto-12 push-pull connectors are backward compatible with all female M12 1.0 sockets made by different manufacturers.

M12 D-Code Circular Metric Connectors

Amphenol LTW M12 D-Code Circular Metric Connectors offer 3-pin to 5-pin screw thread mating styles with a complete 360° shielding design. These connectors reach optimal signal performance with a Cat. 5e data transmission rate. The M12 connectors are compliant with IEC 61076-2-101 to ensure industry-wide connector compatibility. These connectors feature 1000 cycles durability, 48h salt spray, 18AWG to 26 AWG wire gauge, and -55°C to 125°C temperature range. The M12 D-code connectors are vibration-proof, corrosion-resistant, and rated IP67/IP68/IP69K waterproof. These connectors are ideal for LED lighting, marine, broadband wireless access, heavy equipment, renewable energy, industrial automation, railway mass transit, mobile devices, communication, and medical equipment.

MPRONTO-12 M-12 Push-Pull Connectors

Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors are spring-lock designed for backward compatibility with all M12 1.0 thread sockets according to IEC standards. These connectors are uniquely designed with a simple push-to-plug and pull-to-unplug feature. The M-12 push-pull connectors save significant installation time over the standard M12 screw thread mating. Amphenol LTW MPRONTO-12 M-12 Push-Pull Connectors meet IP67, IP68, and IP69K ingress protection requirements, along with RoHS compliance and UL 94V-0 flammability standards. The MPronto-12 plug mates with all M12*1.0 sockets and complies with IEC 61076-2-101, regardless of the manufacturer. It meets IP68 ingress protection and supports M12 A, B, C, D, H, I, P, S, T, X, and Y codes. (S and T codes are available in the overmolded non-shielded version and field installable crimp type). Applications include industrial automation, lift and material handling, hybrid electric vehicles (HEVs), and heavy equipment.
