RTS1BS12N2SHEC03

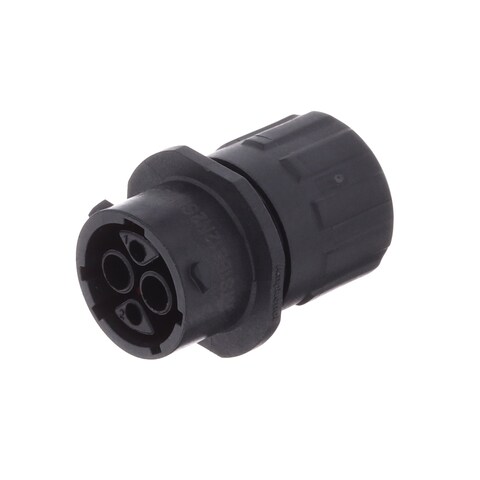

Name: Amphenol RTS1BS12N2SHEC03
Brand: Amphenol SINE Systems
SKU: 654-RTS1BS12N2SHEC03
Price: 7.19 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTS1BS12N2SHEC03

Mfr. No:

RTS1BS12N2SHEC03

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector ECO MATE-AQUARIUS

Datasheet:

RTS1BS12N2SHEC03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTS1BS12N2SHEC03

In Stock: 97

Stock:: 97 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 97 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.19	$7.19
	$6.53	$3,265.00
	$5.84	$5,840.00
2,500	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Contact Gender:	Socket (Female)
Shell Size:	12
Mounting Style:	Cable
Termination Style:	Crimp
Shell Material:	Thermoplastic (TP)
Accessory Type:	Inline Receptacle w Endcap
Diameter:	25 mm
IP Rating:	IP67, IP69k
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	5 A, 7.5 A, 23 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Female
Housing Material:	Thermoplastic
Length:	33.6 mm
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Style:	Receptacle
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Voltage Rating:	500 V
Wire Gauge:	30 AWG to 12 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RTS1BS12N2SHEC03 Datasheet (PDF)

Models

3D Model

Product Catalogs

Technical Resources

Assembly Instructions (PDF)

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
BRHTS:: 85366990
ECCN:: EAR99

eco|mate® Aquarius Waterproof Connectors

Amphenol Sine Systems eco|mate® Aquarius Waterproof Connectors provide an IP68/69K waterproof rating when in a mated condition. Amphenol Sine Aquarius corrosion-resistant connectors feature a plastic shell and low-profile housing for indoor/outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes, along with 27 insert arrangements. Additional features include optional inline, jam-nut, square-flanged, PCB, and end-cap configurations.
