RTS716N4P03

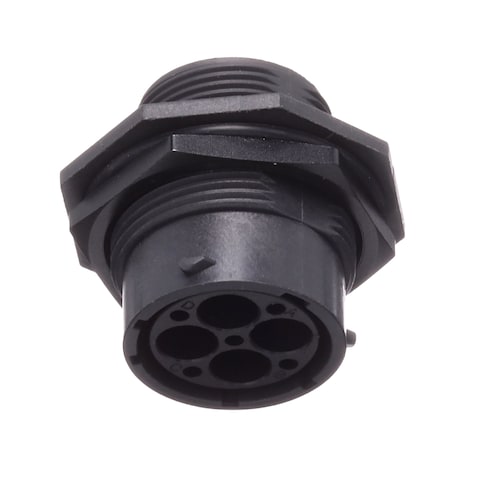

Name: Amphenol RTS716N4P03
Brand: Amphenol SINE Systems
SKU: 654-RTS716N4P03
Price: 10.58 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTS716N4P03

Mfr. No:

RTS716N4P03

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector RCP JN 4POS SZ 16 PIN SEAL

Datasheet:

RTS716N4P03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTS716N4P03

In Stock: 200

Stock:: 200 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$10.58	$10.58
	$9.40	$94.00
	$9.01	$180.20
	$8.69	$434.50
	$8.37	$837.00
	$7.60	$3,800.00
	$7.08	$7,080.00
2,000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Contact Gender:	Pin (Male)
Shell Size:	16
Mounting Style:	Panel
Termination Style:	Crimp
Shell Material:	Thermoplastic (TP)
Accessory Type:	Jam Nut Receptacle
Diameter:	25.3 mm
IP Rating:	IP67, IP69k
Series:	Aquarius
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	45 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Male
Housing Material:	Thermoplastic
Insert Arrangement:	16-4
Length:	33.4 mm
Mating Style:	Threaded
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Style:	Jam Nut
Factory Pack Quantity:	100
Subcategory:	Circular Connectors
Tradename:	Ecomate
Voltage Rating:	600 V
Wire Gauge:	12 AWG to 10 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RTS716N4P03 Datasheet (PDF)

Models

Models

Product Catalogs

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ecomate® Connectors

Amphenol ecomate^® Connectors offer an IP65 to IP69K rating range (in mated condition) for indoor and outdoor industrial applications. These circular, multiway connectors utilize durable plastic or metal construction with a circular bayonet, a quick-locking automatic, or a rapid coupling system option. The Amphenol ecomate family is robust and provides a maximum amperage/voltage range of 56A to 300A/600V to 900V, depending on the series. Suitable applications include factory automation, industrial, solar energy and power, heavy equipment, heavy duty, transportation, marine, entertainment/lighting, robotics, and more.

eco|mate® Aquarius Waterproof Connectors

Amphenol Sine Systems eco|mate® Aquarius Waterproof Connectors provide an IP68/69K waterproof rating when in a mated condition. Amphenol Sine Aquarius corrosion-resistant connectors feature a plastic shell and low-profile housing for indoor/outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes, along with 27 insert arrangements. Additional features include optional inline, jam-nut, square-flanged, PCB, and end-cap configurations.
