171722-1002

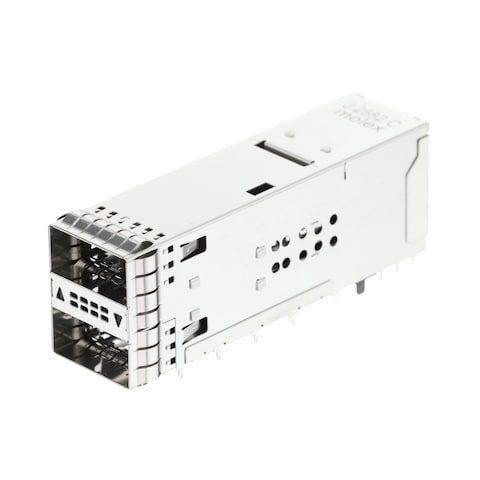

Name: Molex 171722-1002
Brand: Molex
SKU: 538-171722-1002
Price: 41.32 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-171722-1002

Mfr. No:

171722-1002

Mfr.:

Molex

Description:

I/O Connectors zQSFP+ Stkd 2x1wEMI Sprng Fngr LP UD

Datasheet:

171722-1002 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 171722-1002

In Stock: 14

Stock:: 14 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$41.32	$41.32
	$35.56	$426.72
	$34.66	$2,079.60
	$34.10	$3,682.80
	$32.24	$8,124.48

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	I/O Connectors
RoHS:
REACH - SVHC:
Product:	SFP Connectors
Gender:	Female
Number of Positions:	76 Position
Pitch:	0.8 mm
Voltage Rating:	30 V
Contact Plating:	Gold
Mounting Style:	PCB Mount
Termination Style:	Through Hole
Mounting Angle:	Right Angle
Series:	171722
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tray
Brand:	Molex
Color:	Black
Contact Material:	Copper Alloy
Current Rating:	500 mA
Flammability Rating:	UL 94 V-0
Housing Material:	Thermoplastic (TP)
Number of Ports:	2 Port
Product Type:	I/O Connectors
Factory Pack Quantity:	12
Subcategory:	I/O Connectors
Tradename:	zQSFP+
Type:	zQSFP
Unit Weight:	34.608 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

171722-1002 Datasheet

Models

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

High-Speed Solutions

Molex High-Speed Solutions meet the most stringent high-speed performance requirements. The broad connector portfolio supports a wide range of data rates in multiple sizes and shapes. High-speed interconnect solutions provide the flexibility and scalability required to meet the demands of next-generation systems.

zQSFP+ EMI Cages

Molex zQSFP+ EMI Cages are designed with an advanced heat-sink system to provide a high level of heat dissipation for next-generation system power levels. The die-cast design features a screw-down option to the PCB for maximum board retention. The spring-finger design provides optimal EMI grounding and allows for more space to route high-speed traces.

zQSFP+ I/O Connectors

Molex zQSFP+ interconnect solution conforms to SFF-8665 QSFP28 and is designed for high-density interconnect applications. Components of the system include SMT connectors and stacked integrated 2-by-1, 2-by-2, and 2-by-3 connectors and cages. Molex zQSFP+ SMT connectors support 100Gbps Ethernet and 100Gbps InfiniBand (IB) Enhanced Data Rate (EDR) applications.
