204226-1001

Name: Molex 204226-1001
Brand: Molex
SKU: 538-204226-1001
Price: 0.06 USD
Availability: InStock

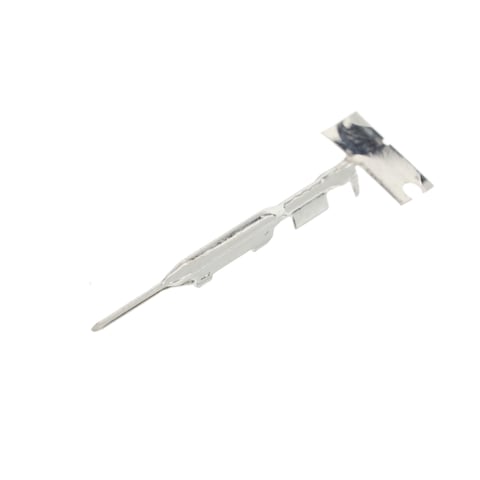

Images are for reference only
See Product Specifications

Mouser No:

538-204226-1001

Mfr. No:

204226-1001

Mfr.:

Molex
Molex

Description:

Headers & Wire Housings Squba Plg Term 22-24AWG Matte Tin

Datasheet:

204226-1001 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 204226-1001

In Stock: 56,000

Stock:: 56,000 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 14000 Multiples: 14000

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
Full Reel (Order in multiples of 14000)
	$0.063	$882.00
	$0.058	$2,436.00
	$0.056	$3,136.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Contacts
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	112095
Tradename:	Squba
Application:	Wire-to-Wire
Wire Gauge:	24 AWG to 22 AWG
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Brand:	Molex
Contact Material:	Copper Alloy
Current Rating:	6 A
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	14000
Subcategory:	Headers & Wire Housings
Voltage Rating:	125 V
Part # Aliases:	02042261001
Unit Weight:	96 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

204226-1001 Datasheet

Images

3D Image

RoHS Certificate (PDF)

CNHTS:: 8536901100
TARIC:: 8536909599
CAHTS:: 8536690020
USHTS:: 8536904000
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Squba 1.8mm & 3.6mm Sealed Wire-to-Wire Connectors

Molex Squba Sealed Wire-to-Wire Connectors are a 1.80mm-pitch & 3.6mm sealed wire-to-wire connection system. Molex Squba offers an IP67 NEMA rating and carries 6.0A (1.8mm) and 14.0A (3.6mm) of current to deliver reliable power in a wide range of space-constrained applications. These 2- to 10-circuit sealed connectors offer a protected, low-profile positive latch and sealed caps with protective terminal channels. Primary lock enables 30N terminal retention. Wraparound insulation crimps provide security against seal punctures.

Body Electronics Solutions

Molex Body Electronics Solutions create dynamic solutions for unique driving styles and enhance vehicle functionality. Molex Body Electronics products include control modules, cable assemblies, and interconnects that minimize weight and maximize space utilization. Molex Body Electronics are ideal for steering, power distribution, entry systems, and climate control applications.
