204843-0001

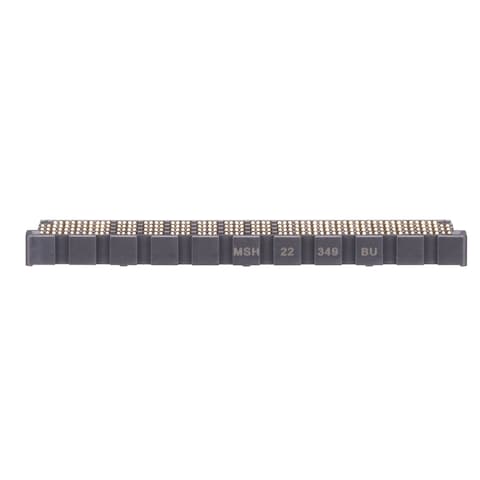

Name: Molex 204843-0001
Brand: Molex
SKU: 538-204843-0001
Price: 125.34 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-204843-0001

Mfr. No:

204843-0001

Mfr.:

Molex

Description:

Board to Board & Mezzanine Connectors MirrorMezz Hermaph 2.5mmHght 7PX11R

Datasheet:

204843-0001 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 204843-0001

In Stock: 610

Stock:: 610 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$125.34	$125.34
	$115.03	$1,150.30
	$110.60	$2,765.00
	$106.91	$5,345.50
	$101.01	$10,101.00
Full Reel (Order in multiples of 200)
	$101.01	$20,202.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	699 Position
Pitch:	1.3 mm (0.051 in)
Number of Rows:	11 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	2.5 mm
Current Rating:	1 A
Voltage Rating:	30 V
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Contact Plating:	Gold
Contact Material:	Copper
Housing Material:	Thermoplastic (TP)
Series:	204843
Packaging:	Reel
Packaging:	Cut Tape
Application:	Board-to-Board
Brand:	Molex
Mounting Style:	PCB
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	200
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Mirror Mezz
Part # Aliases:	02048430001
Unit Weight:	5.257 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Board-to-Board Connectors

Molex Board-to-Board Connectors are available in a variety of configurations, offering an expansive array of pitches and stacking heights. The printed circuit board (PCB) is a foundational staple in the electronics industry, and with continuing trends toward miniaturization, designers need a more diverse range of solutions for creating dependable PCB connections. To fit a range of applications, Molex Board-to-Board Connectors include mezzanine, backplane, coplanar, and more. These connectors are ideal for microminiature and high-power applications.

Mirror Mezz Connectors

Molex Mirror Mezz Connectors feature footprint-compatible hermaphroditic connectors with stackable mating. These connectors support data speeds of up to 56Gbps per differential pair for telecommunications, networking and other applications. Molex Mirror Mezz connectors feature a stitched ball-grid-array (BGA) design rather than insert-moulded BGA attachments. These connectors come with an intricately designed terminal structure that provides numerous mechanical strengths and cutting-edge electrical features. Typical applications include servers, networking, storage and infrastructure.
