OD1238-12HBVXE10A

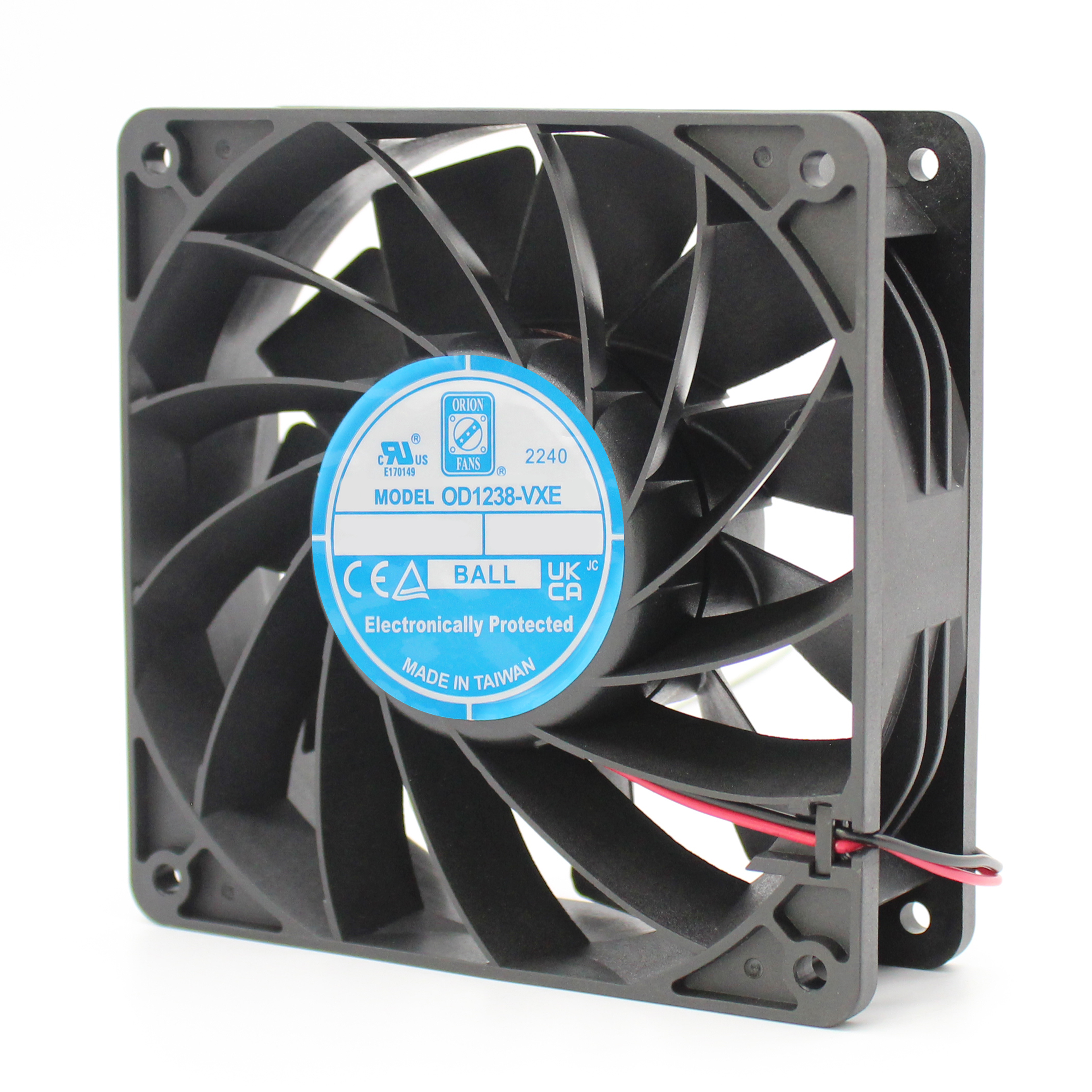

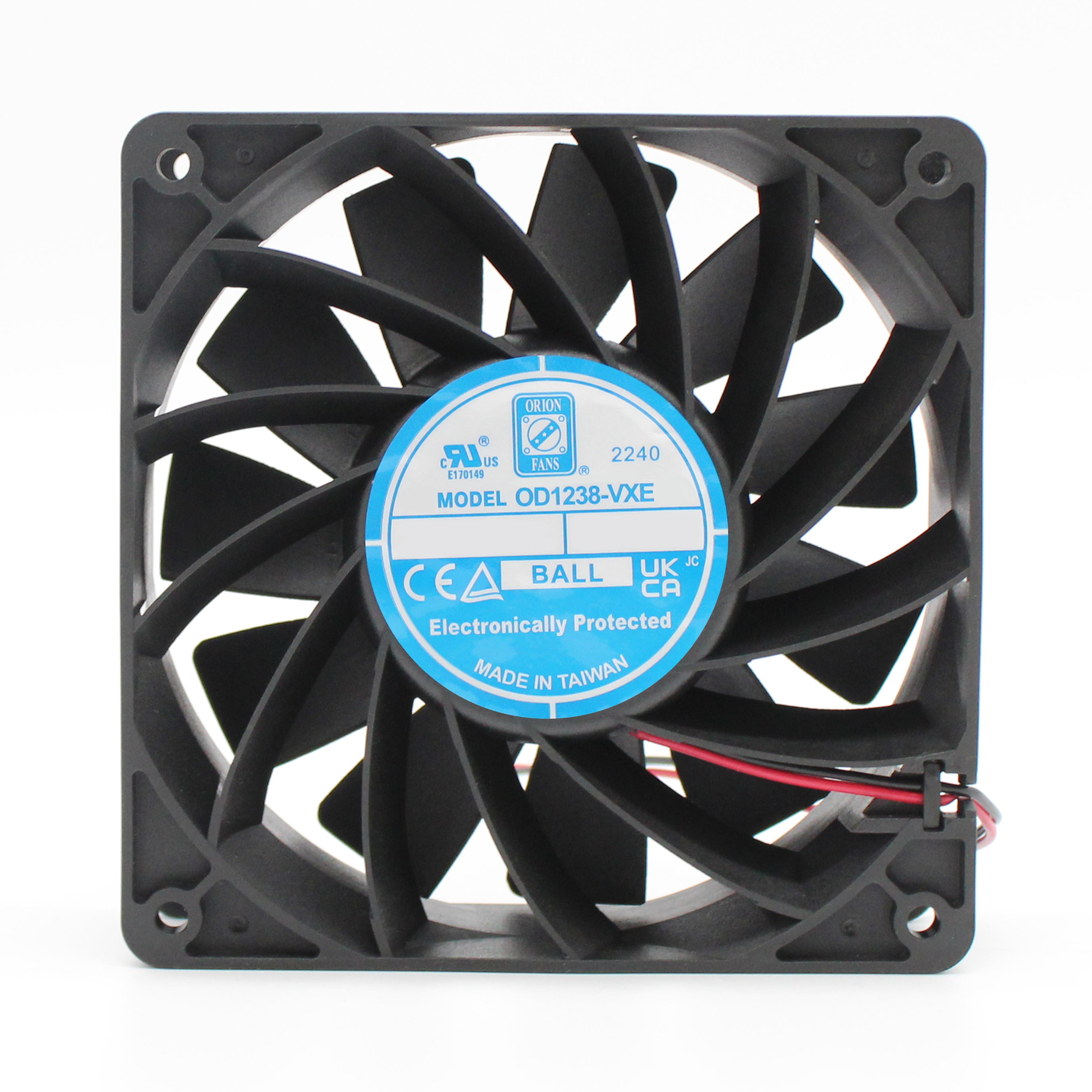

Name: Orion Fans OD1238-12HBVXE10A
Brand: Orion Fans
SKU: 670-OD123812HBVXE10A
Price: 43.42 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

670-OD123812HBVXE10A

Mfr. No:

OD1238-12HBVXE10A

Mfr.:

Orion Fans

Description:

DC Fans Vane Axial Fan, 120x120x38mm, 12VDC, 236CFM, 1.6"H2O, High Performance, Tach/PWM

Datasheet:

OD1238-12HBVXE10A Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Orion Fans OD1238-12HBVXE10A

In Stock: 49

Stock:: 49 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$43.42	$43.42
	$35.77	$357.70
	$35.76	$1,430.40

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Orion Fans
Product Category:	DC Fans
RoHS:
Type:	Vaneaxial
Height:	120 mm
Depth:	38 mm
Width:	120 mm
Operating Supply Voltage:	12 VDC
Airflow:	236 CFM (6.68 m3/min)
Speed:	4925 RPM
Bearing Type:	Ball
Noise:	60.6 dBA
Power Rating:	46.3 W
Features:	Tachometer, PWM
Housing Material:	Polybutylene Terephthalate (PBT)
Termination Style:	Wire Leads - 4
Series:	VXE
Brand:	Orion Fans
Current Type:	DC
Length:	120 mm
Life:	70000 Hour
Product Type:	DC Fans
Factory Pack Quantity:	40
Subcategory:	Fans, Blowers & Accessories
Part # Aliases:	OD1238-12HBVXE10AX
Unit Weight:	317.514 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

OD1238-12HBVXE10A Datasheet (PDF)

Images

Technical Resources

EU Declaration of Conformity (PDF)

CAHTS:: 8414590091
USHTS:: 8414596590
JPHTS:: 841459029
KRHTS:: 8414599000
TARIC:: 8414592590
MXHTS:: 8414599999
ECCN:: EAR99

XE & VXE High-Performance Fans

Orion Fans XE and VXE High-Performance Fans are powerful 12V, 24V, and 48V fans designed to achieve higher airflow in a smaller frame size. The XE fans offer higher speeds and provide higher airflow performance (CFM) compared with standard models. The VXE fans offer higher airflow and higher static pressure in a single fan solution when compared with standard fan models. These fans also feature a vane axial frame design with motor strut vanes to curve and prevent backflow and turbulence while providing great stability to the motor for high RPM operation. Applications for Orion Fans XE and VXE High-Performance Fans include high-performance and industrial computing, networking and telecom enclosures, food and beverage industry, and electric vehicle (EV) charging base stations.
