ERDP-049-40.00-TBR-TBL-7-D

Name: Samtec ERDP-049-40.00-TBR-TBL-7-D
Brand: Samtec
SKU: 200-ERDP4940TBRTBL5D
Price: 361.63 USD
Availability: InStock

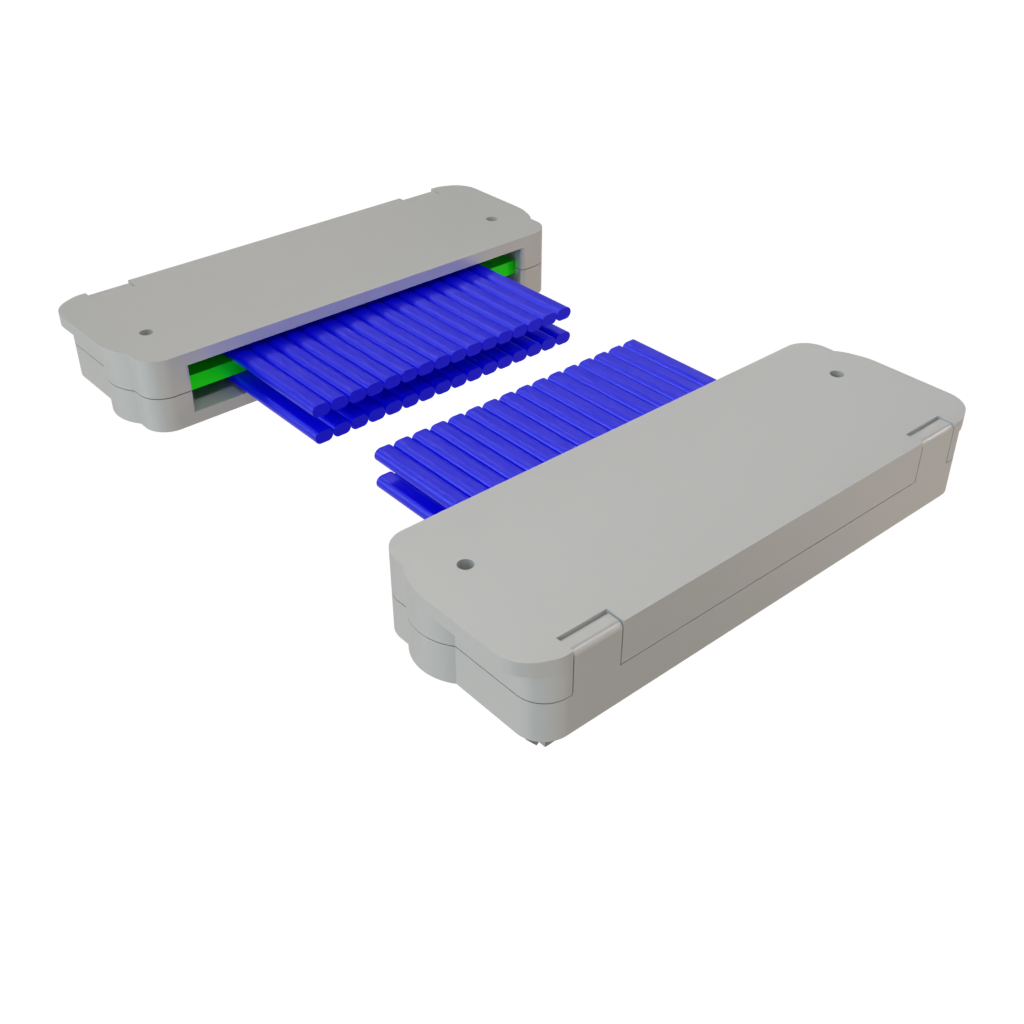

Images are for reference only
See Product Specifications

Mouser No:

200-ERDP4940TBRTBL5D

Mfr. No:

ERDP-049-40.00-TBR-TBL-7-D

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables 0.80 mm Edge Rate Twinax Cable Assemblies

Datasheet:

ERDP-049-40.00-TBR-TBL-7-D Datasheet (PDF)

More Information

Learn more about Samtec ERDP-049-40.00-TBR-TBL-7-D

In Stock: 2

Stock:: 2 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$361.63	$361.63
	$340.54	$3,405.40
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	Twinax Ribbon Cable
Connector End A:	Plug
Connector End A Pin Count:	98 Position
Connector End B:	Plug
Connector End B Pin Count:	98 Position
Pitch:	0.8 mm
Gender:	Male / Male
Cable Length:	1.016 m
Wire Gauge - AWG:	30 AWG
Series:	ERDP
Packaging:	Bulk
Brand:	Samtec
Product:	Twinax Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ERDP-049-40.00-TBR-TBL-7-D Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8544200000
USHTS:: 8544200000
JPHTS:: 854420000
KRHTS:: 8544200000
TARIC:: 8544429090
BRHTS:: 85442000
ECCN:: EAR99

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

ERDP Edge Rate® Twinax Cable Assemblies

Samtec ERDP Edge Rate® Twinax Cable Assemblies offer a 0.80mm pitch rating, 100Ω differential signal routing, and 30AWG twinax cable. The ERDP series uses Samtec's Eye Speed® cable to provide 14Gbps performance and features broadside wiping contacts to reduce unwanted crosstalk.
