IPBT-105-H1-T-S-RA-K

Name: Samtec IPBT-105-H1-T-S-RA-K
Brand: Samtec
SKU: 200-IPBT105H1TSRAK
Price: 1.77 USD
Availability: InStock

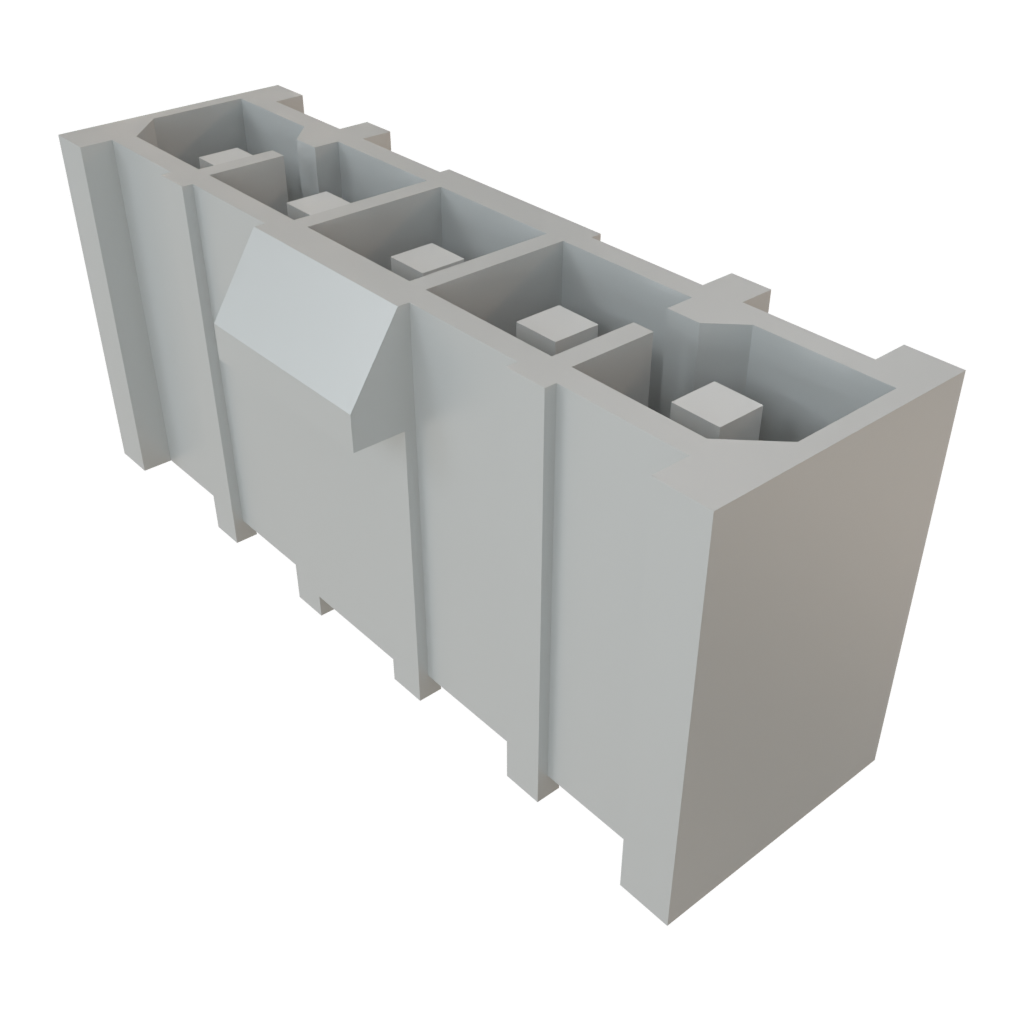

Images are for reference only
See Product Specifications

Mouser No:

200-IPBT105H1TSRAK

Mfr. No:

IPBT-105-H1-T-S-RA-K

Mfr.:

Samtec

Description:

Power to the Board 4.19MM POWER MATE ISO PWR HDR

Datasheet:

IPBT-105-H1-T-S-RA-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPBT-105-H1-T-S-RA-K

In Stock: 1,674

Stock:: 1,674 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.77	$1.77
	$1.61	$80.50
	$1.37	$137.00
	$1.18	$590.00
	$1.12	$1,120.00
	$1.03	$2,060.00
	$0.89	$4,450.00
	$0.80	$8,000.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	10.3 A
Voltage Rating:	400 VAC, 565 VDC
Number of Positions:	5 Position
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Pitch:	4.19 mm
Series:	IPBT
Packaging:	Tube
Tradename:	Power Mate
Brand:	Samtec
Contact Material:	Copper Alloy
Contact Plating:	Tin
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Right Angle
Number of Rows:	1 Row
Factory Pack Quantity:	25
Subcategory:	Power Connectors
Unit Weight:	720 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

4.19mm (0.165") Power Mate® Discrete Wire System

Samtec 4.19mm (0.165") Power Mate® Discrete Wire System features cables and connectors with individually shrouded contacts for reliability in harsh environments with up to 10.4A. This product lineup is available as components with tooling or as complete cable assemblies. The Power Mate discrete wire system is shrouded, polarized, and keyed and offers a 10.4A maximum current rating, 400V_AC / 566V_DC voltage rating, and 24AWG to 16AWG PVC or Teflon™ fluoropolymer cable. Additional features include plastic latches, single or double row, up to 30 pins, and mating terminal strips in a vertical or right-angle orientation. Ideal applications for the Samtec 4.19mm (0.165") Power Mate series are military, aerospace, submersibles, and other harsh environments.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.
