SEAM-30-02.0-L-10-2-A-K-TR

Name: Samtec SEAM-30-02.0-L-10-2-A-K-TR
Brand: Samtec
SKU: 200-SEAM3002.0L102AK
Price: 22.7 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAM3002.0L102AK

Mfr. No:

SEAM-30-02.0-L-10-2-A-K-TR

Mfr.:

Samtec

Description:

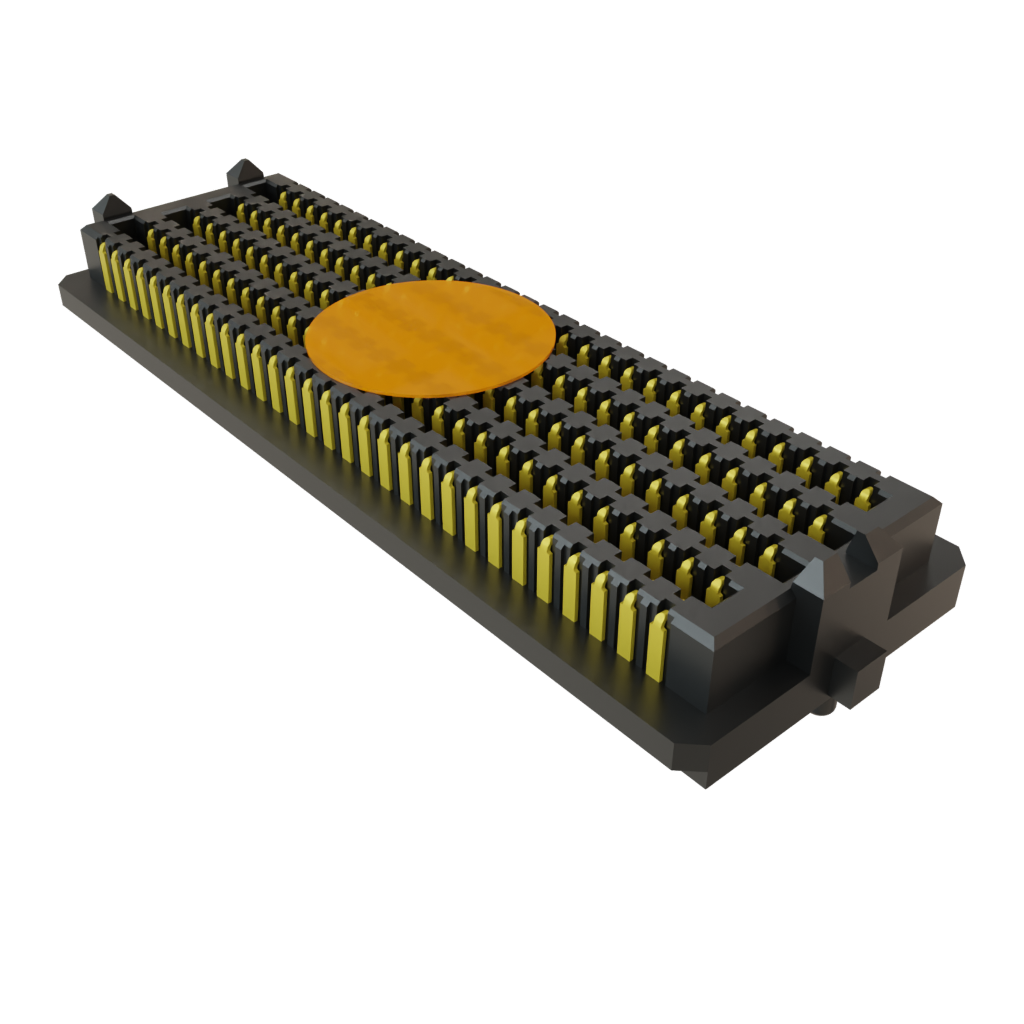

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Datasheet:

SEAM-30-02.0-L-10-2-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAM-30-02.0-L-10-2-A-K-TR

In Stock: 279

Stock:: 279 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$22.70	$22.70
	$21.71	$217.10
	$20.89	$522.25
	$19.37	$968.50
	$16.64	$1,664.00
Full Reel (Order in multiples of 225)
	$16.64	$3,744.00
	$14.15	$6,367.50
	$10.38	$9,342.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	300 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	10 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 8 mm, 8.5 mm, 9.5 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAM
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Data Rate:	56 Gbps
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	225
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
Unit Weight:	4.665 g
