ST4-50-1.50-L-D-P-TR

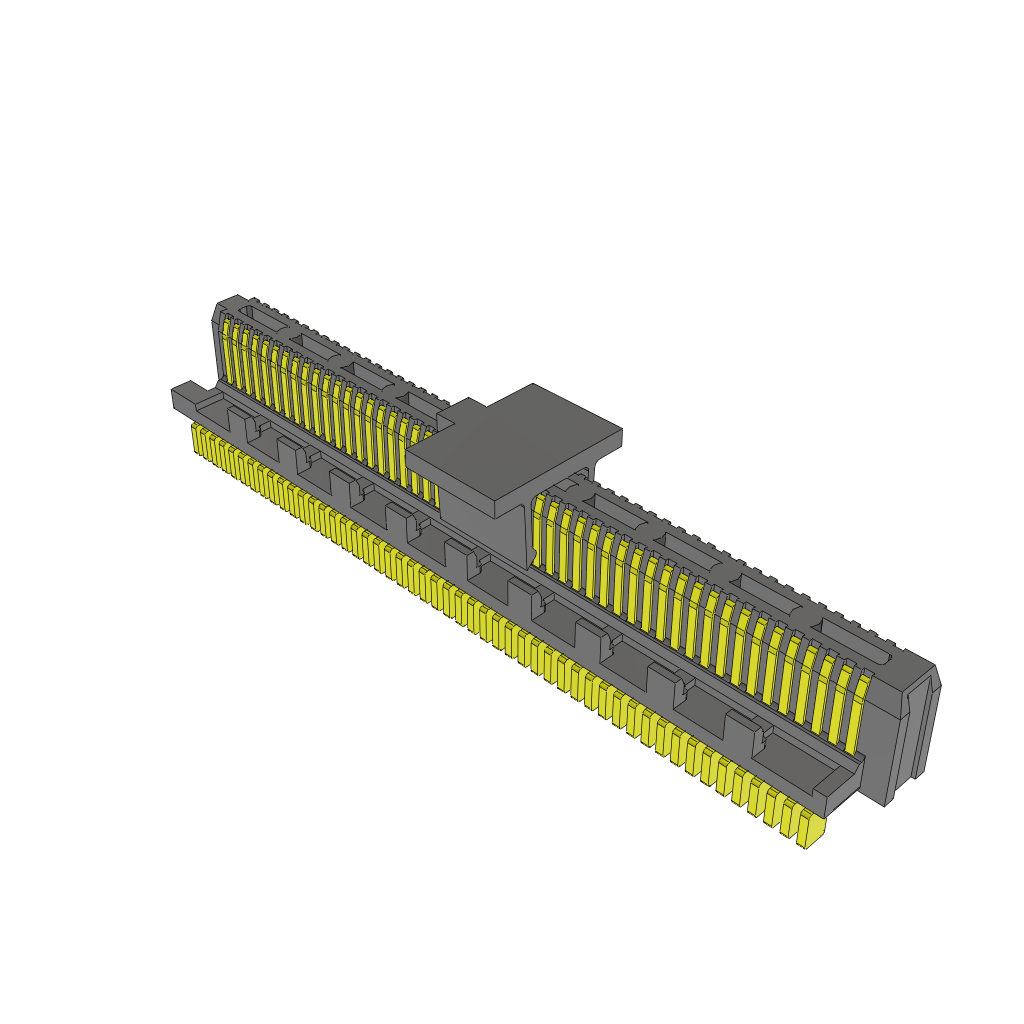

Name: Samtec ST4-50-1.50-L-D-P-TR
Brand: Samtec
SKU: 200-ST4501.50LDPTR
Price: 5.12 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ST4501.50LDPTR

Mfr. No:

ST4-50-1.50-L-D-P-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.40 mm Micro Blade & Beam Ultra Fine Pitch Header

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ST4-50-1.50-L-D-P-TR

In Stock: 845

Stock:: 845 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 850)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$5.12	$5.12
	$4.63	$231.50
	$4.34	$434.00
	$3.92	$980.00
Full Reel (Order in multiples of 850)
	$3.42	$2,907.00
	$3.00	$5,100.00
	$2.69	$11,432.50

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	100 Position
Pitch:	0.4 mm (0.016 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	4.5 mm, 5 mm
Current Rating:	1.6 A
Voltage Rating:	155 VAC
Maximum Data Rate:	28 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ST4
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power, Signal
Brand:	Samtec
Data Rate:	28 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	850
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam LP
Unit Weight:	122.680 mg
