FN7661-100-M8

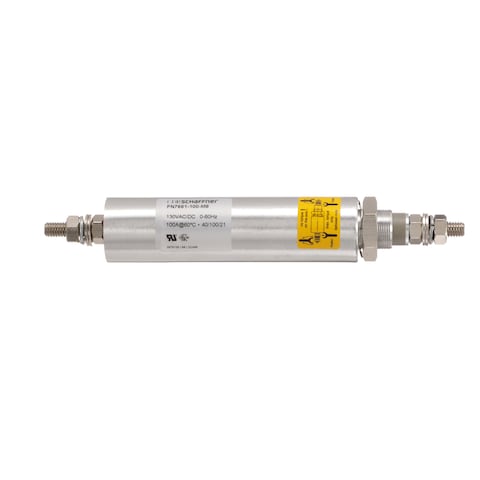

Name: TE Connectivity FN7661-100-M8
Brand: TE Connectivity / Schaffner
SKU: 631-FN7661-100-M8
Price: 206.04 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

631-FN7661-100-M8

Mfr. No:

FN7661-100-M8

Mfr.:

TE Connectivity / Schaffner

Description:

EMI Feedthrough Filters 100A TERMINAL 5Nm FEED-THROUGH FILTERS

Datasheet:

FN7661-100-M8 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Schaffner FN7661-100-M8

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 11

Expected 08/02/2027
Factory Lead Time:: 11

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$206.04	$206.04
	$191.83	$1,918.30
	$186.08	$9,304.00
100	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	EMI Feedthrough Filters
RoHS:
Series:	FN766X
Circuit Type:	Y4
Capacitance:	1 uF
Voltage Rating:	300 VAC
Maximum DC Current:	100 A
Maximum DC Resistance:	280 uOhms
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 100 C
Brand:	TE Connectivity / Schaffner
Diameter:	32 mm
Height:	32 mm
Length:	184 mm
Product:	EMI Feedthrough Filters
Product Type:	EMI Feedthrough Filters
Factory Pack Quantity:	10
Subcategory:	Filters
Thread Size:	M8
Type:	DC Feedthrough Capacitor
Width:	32 mm
Part # Aliases:	801445-SF
Unit Weight:	320 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

FN7661-100-M8 Datasheet (PDF)

REACH Declaration (PDF)

CNHTS:: 8548000001
CAHTS:: 8548000000
USHTS:: 8548000000
JPHTS:: 854800000
KRHTS:: 8504509090
TARIC:: 8532250000
MXHTS:: 8504509102
BRHTS:: 85045000
ECCN:: EAR99

Filters for Medical Devices

TE Connectivity / Schaffner Filters for Medical Devices offer single- and dual-stage modules in an ultra-compact, user-friendly design. In medical technology, a variety of devices need to meet strict guidelines and must always work reliably. Schaffner offers a variety of EMC/EMI filters that meet the highly demanding requirements associated with these applications. The filters help ensure the proper, continuous and safe operation of medical devices. These filters feature up to a 250V_AC voltage rating and have a maximum permissible leakage current of 0.1mA in normal operation. TE Connectivity / Schaffner Filters for Medical Devices include EMC/EMI Components, Power Line Filters, and EMC/EMI Filters.

EMC/EMI Components for Medical Devices

TE Connectivity / Schaffner EMC/EMI Components for Medical Devices offer a 250V_AC to 3000V_AC voltage range and a 1A to 2300A rating, depending on the model. These EMC/EMI Components offer a cost-effective approach with safety in mind while complying with various industry standards, including UL/CSA/IEC/EN. TE Connectivity / Schaffner EMC/EMI Components are ideal for CAT scanners, defibrillators, laboratory equipment, and X-ray equipment.
