1-2250024-1

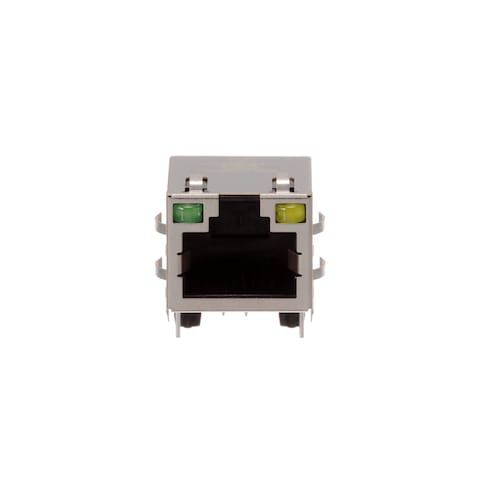

Name: Bel 1-2250024-1
Brand: TRP Connector / Bel
SKU: 530-1-2250024-1
Price: 7.47 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

530-1-2250024-1

Mfr. No:

1-2250024-1

Mfr.:

TRP Connector / Bel

Description:

Modular Connectors / Ethernet Connectors Single Port Tab Up with LED

Datasheet:

1-2250024-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TRP Connector / Bel 1-2250024-1

In Stock: 108

Stock:: 108

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 770

Expected 20/03/2026
Factory Lead Time:: 17

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.47	$7.47
	$6.74	$67.40
	$6.25	$156.25
	$6.01	$300.50
	$5.73	$573.00
	$5.21	$1,302.50
	$4.95	$1,905.75
	$4.81	$5,555.55

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Bel
Product Category:	Modular Connectors / Ethernet Connectors
RoHS:
Product:	Connectors
Type:	Magnetic Jack
Gender:	Jack (Female)
USOC Codes:	RJ45
Configuration:	1x1
Number of Positions/Contacts per Port:	8P8C
Shielding:	Shielded, EMI Fingers
Performance Category:	Cat 5
Mounting Style:	Through Hole
Mounting Angle:	Right Angle
Termination Style:	Solder
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 70 C
Color:	Black
LED L / R Colour:	Green / Yellow
Tab Direction:	Tab Up
Packaging:	Tray
Application:	10/100 Base-T PoE
Brand:	TRP Connector / Bel
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Flammability Rating:	UL 94 V-0
Number of Ports:	1 Port
Number of Positions:	8 Position
Product Type:	Modular Connectors / Ethernet Connectors
Factory Pack Quantity:	385
Subcategory:	Modular Connectors / Ethernet Connectors
Tradename:	MagJack
Unit Weight:	9.098 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

MagJack® Integrated Connector Modules

Bel Magnetic Solutions MagJack® Integrated Connector Modules (ICMs) address a combination of requirements, meeting IEEE 802.3, TIA-968-A, and FCC-Part 15 standards. This combination eases the implementation of medium-dependent interfaces. The MagJack series allows connection from the physical layer to the physical medium. Bel Magnetic Solutions MagJack Integrated Connector Modules consist of an RJ45 connector, transformers, capacitors, and resistors that provide isolation and EMI suppression.
