1200V PIM 3 Phase Input Rectifiers

Infineon Technologies 1200V PIM 3 Phase Input Rectifiers are EconoPIM™ 2 1200V, 100A three-phase PIM IGBT modules. The rectifiers feature TRENCHSTOP™ IGBT7, Emitter Controlled 7 diode and NTC. The PIM (Power Integrated Modules) with the integration of rectifier and brake chopper enables system cost savings.

Results: 7
Select Image Part #
 Mfr.
Description Datasheet Availability Pricing (USD) Filter the results in the table by unit price based on your quantity.
Qty. RoHS ECAD Model Product
Configuration
Collector- Emitter Voltage VCEO Max
Collector-Emitter Saturation Voltage
Continuous Collector Current at 25 C
Gate-Emitter Leakage Current
Minimum Operating Temperature
Maximum Operating Temperature
Technology
Packaging
Infineon Technologies FP35R12N2T7BPSA2
Infineon Technologies IGBT Modules 1200 V, 35 A PIM IGBT module
Datasheet
28In Stock
Min.: 1
Mult.: 1

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.6 V 35 A 100 nA - 40 C + 175 C Si Tray


Infineon Technologies IGBT Modules LOW POWER ECONO
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 1
Mult.: 1

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.5 V 100 A 100 nA - 40 C + 175 C Si Tray

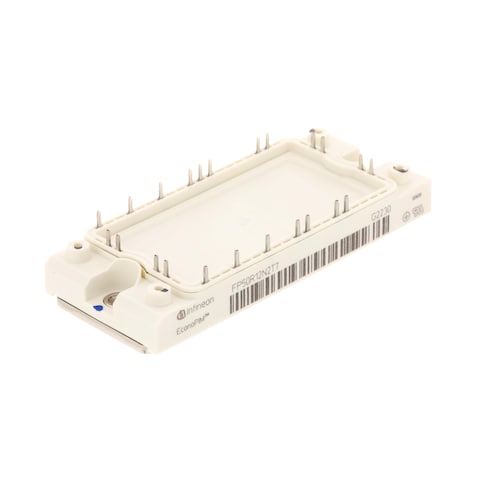

Infineon Technologies IGBT Modules 1200 V, 50 A PIM IGBT module
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 1
Mult.: 1

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.5 V 50 A 100 nA - 40 C + 175 C Si Tray


Infineon Technologies IGBT Modules 1200 V, 75 A PIM IGBT module
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 1
Mult.: 1

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.55 V 75 A 100 nA - 40 C + 175 C Si Tray
Infineon Technologies FP35R12N2T7B11BPSA2
Infineon Technologies IGBT Modules 1200 V, 35 A PIM IGBT module
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 15
Mult.: 15

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.6 V 35 A 100 nA - 40 C + 175 C Si Tray
Infineon Technologies FP50R12N2T7B11BPSA2
Infineon Technologies IGBT Modules 1200 V, 50 A PIM IGBT module
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 15
Mult.: 15

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.5 V 50 A 100 nA - 40 C + 175 C Si Tray
Infineon Technologies FP75R12N2T7B11BPSA2
Infineon Technologies IGBT Modules 1200 V, 75 A PIM IGBT module
Datasheet
Non-Stocked Lead-Time 16 Weeks
Min.: 15
Mult.: 15

IGBT Silicon Modules 3-Phase Inverter 1.2 kV 1.55 V 75 A 100 nA - 40 C + 175 C Si Tray
