ams OSRAM EGA2000 Starboard
ams OSRAM EGA2000 Starboard is a PCB adaptor with a module soldered on it. It is used to connect any EGA2000 module to an external power/control unit. The Starboard diameter is 16mm with a thickness of 1.6mm. It has a pad for a pogo pin or soldered leads.
Features
- Starboard diameter = 16mm
- Starboard thickness= 1.6mm
- Pad for pogo pin or soldered leads
- VCSEL Cathode and -ve pads on the exposed base
- VCSEL Anode and +ve pads on top

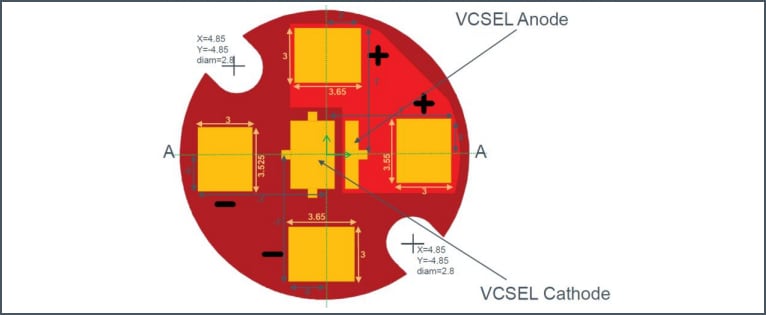

Dimensions
Related Products
ams OSRAM EGA2000 Industrial High Power Flood Illuminators
Composed of a VCSEL die and a micro-lens array (MLA).
