Molex Fit Family Connectors
Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

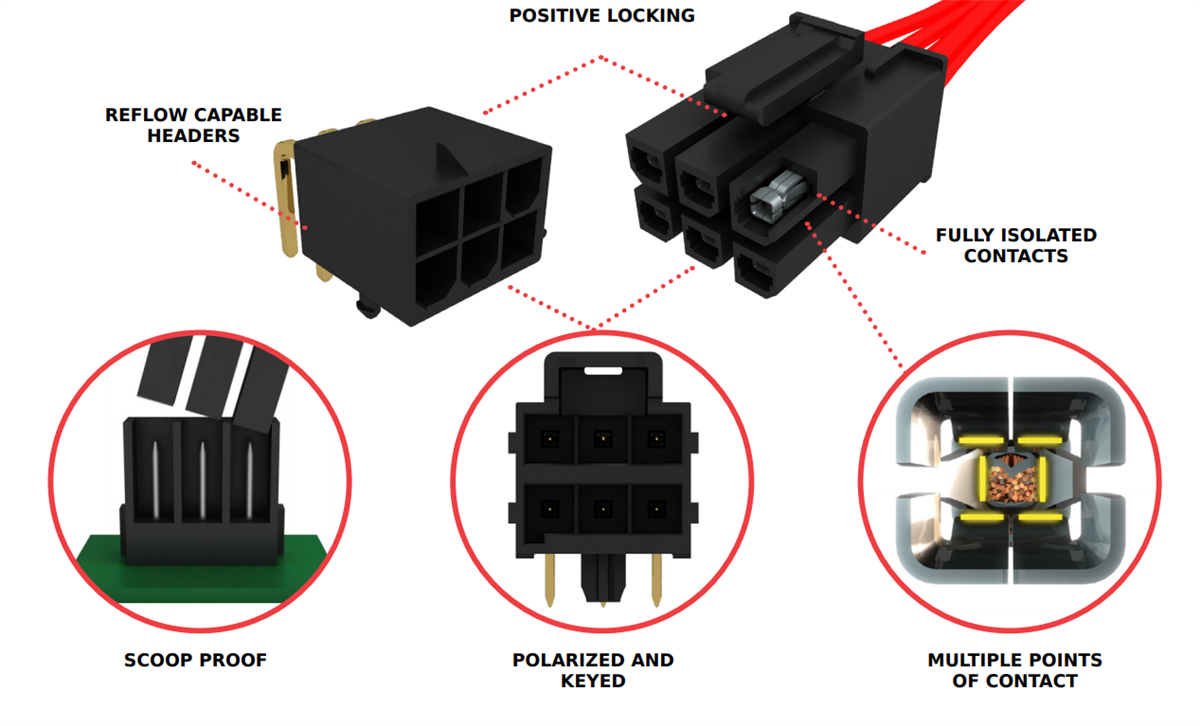

Features
- Polarized and keyed connectors ensure header and receptacle cannot be mismated
- Positive locking connectors ensure mated assemblies will not accidentally disengage
- Fully isolated contacts
- Multiple contact points
- Reflow capable headers made of high-temperature liquid crystal polymer (LCP) materials
- Scoop-proof contacts prevent damage to terminals and header pins
Featured Connectors
Molex Mega-Fit Power Connectors
Designed to deliver an alternative, higher-current power over existing power connectors.
Molex Ultra-Fit™ Power Connectors
Eliminates same-circuit-size cross mating and reduces terminal backout occurrences.
Molex Color- & Mechanically Keyed Connectors
Prevents costly connector mating mishaps, simplifying assembly in ways that can speed up production.
Molex Micro-Fit+ Versa Connectors
3mm pitch for space-constrained applications, variety of design options, including polarization.
Molex Micro-Fit+ Connectors
Superior design options for efficient assembly, up to 13.5A current rating, and 3mm pitch.
Molex Micro-Fit 3.0 Connector System
For high contact density signal or power, features miniature 3mm pitch and up to 8.5A current.
Molex Mini-Fit Versa Color Connectors
Offers visual color pairing to reduce assembly errors and to help ensure terminals are fully seated.
Molex Mini-Fit Jr. Connectors
Ideal for higher current / higher density applications which require design flexibility.
Molex Mini-Fit Sigma Connectors & Pre-Crimped Leads
Features TPA with a secondary locking feature for sealed terminals and fewer assembly errors.
Molex Mini-Fit Max Connectors
Offer 20.5A current in a compact package and tangless terminal design with TPA-capable receptacle.
Molex Mini-Fit Connector Family
Delivers up to 9.0A and 13.0A with blind-mating and terminal position assurance options.
Molex Nano-Fit 2.5mm Pitch Power Connectors
Fully isolated, compact power connectors delivering up to 8.0A with a 2.50mm pitch.
