Texas Instruments DP83TG720-EVM-AM2 Evaluation Module (EVM)
Texas Instruments DP83TG720-EVM-AM2 Evaluation Module (EVM) is an automotive Ethernet PHY add-on board for AM2x series Arm®-Based high-performance microcontroller evaluation modules. This add-on board is ideal for initial Ethernet evaluation and prototyping using AM2x evaluation modules. DP83TG720-EVM-AM2 has a Texas Instruments DP82TG720S-Q1 1000BASE-T1 automotive Ethernet PHY with RGMII, SGMII, and a MATEnet connector. DP83TG720-EVM-AM2 is currently supported on TMDSCNCD263P and the AM263Px MCU PLUS SDK.
Features
- DP83TG720S-Q1 1000BASE-T1 automotive Ethernet PHY with RGMII and SGMII
- MATEnet Ethernet networking connector
- Shielded DF40GB 48-pin connector for interfacing with Arm-Based AM2x series evaluation modules
Applications
- Telematics control unit (TCU, TBOX)
- Gateway and Body Control Module (BCM)
- ADAS (LIDAR, RADAR, front camera)

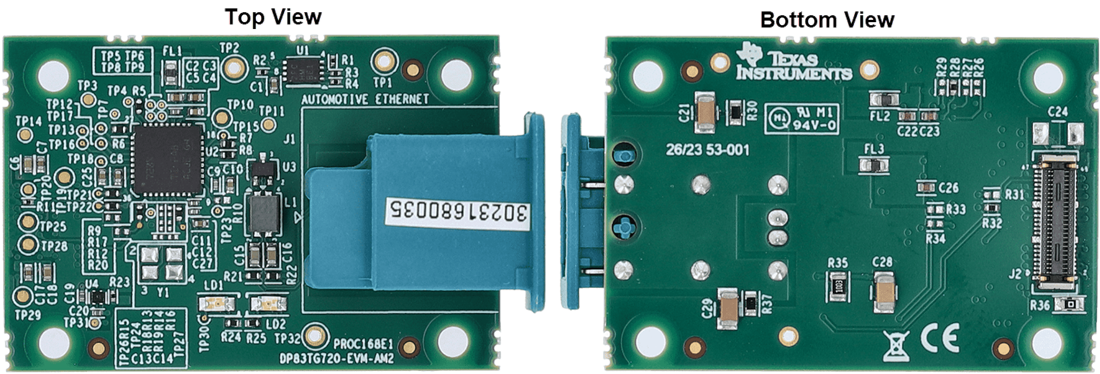

Board Layout
Related Products
Texas Instruments AM263Px/AM263Px-Q1 Arm®-Based MCUs
Meets the real-time processing needs of next-generation industrial and automotive embedded products.
Texas Instruments DP83TG720S-Q1 Automotive Ethernet PHY
IEEE 802.3bp and Open Alliance compliant automotive Ethernet physical layer transceiver.
Texas Instruments TLV755P 500mA LDO Regulators
Offers foldback overcurrent protection and ideal line and load transient performance.
Related Development Tools
Texas Instruments TMDSCNCD263P-SIP Control Card Evaluation Module
The evaluation tool is for the AM263Px series Arm®-based high-performance microcontrollers.
Texas Instruments TMDSHSECDOCK-AM263 AM263x-CC Evaluation Module
A high-speed edge card dock for TMDSCNCD263 and TMDSCNCD263P control cards for the AM263x MCUs.
Published: 2024-10-21
| Updated: 2024-10-29
